EP Series · Electric Counterbalance
Built for three-shift operations
The EP30 lifts 3,000 kg at a 500 mm load center and charges from 0 to 80% in 2 hours — built for three-shift operations. Its 80 V lithium (LiFePO4) battery pack of 206 Ah supports opportunity charging, so the truck recharges during breaks instead of waiting for a full charge cycle. Battery thermal management keeps the pack within its operating window, and a side shifter is fitted as standard.
Every unit is 100% load-tested before shipment under our ISO 9001:2015 quality system at our 68,000 m² manufacturing plant in Qingdao.
Granvolt EP Series
EP30
3.0 t Lithium Counterbalance Forklift
Rated load
3,000 kg @ 500 mm
Power
80 V lithium (LiFePO4), 206 Ah
Lift height
3,000 mm (max 6,000 mm)
Charging
0–80% in 2 h, 100% in 4 h
Specifications
Full technical specifications
All figures from the Granvolt EP30 datasheet. Values are stated at rated conditions; confirm configurations for your duty cycle in your RFQ.
| Model | EP30 |
|---|---|
| Description | 3.0 t Lithium Counterbalance Forklift |
| Rated load | 3,000 kg @ 500 mm |
| Power type | 80 V lithium (LiFePO4), 206 Ah |
| Lift height | 3,000 mm (max 6,000 mm) |
| Traction motor | AC traction 6 kW |
| Charging time | 0–80% charge in 2 h, 100% in 4 h |
| Charging strategy | Opportunity charging |
| Battery management | Battery thermal management |
| Standard equipment | Side shifter |
| Applications | Heavy-duty indoor logistics, 3-shift operations |
| Certifications | CE + TÜV Rheinland (battery system) |
Lithium pack assembly is carried out in-house, and every unit is 100% load-tested before shipment.
In Operation

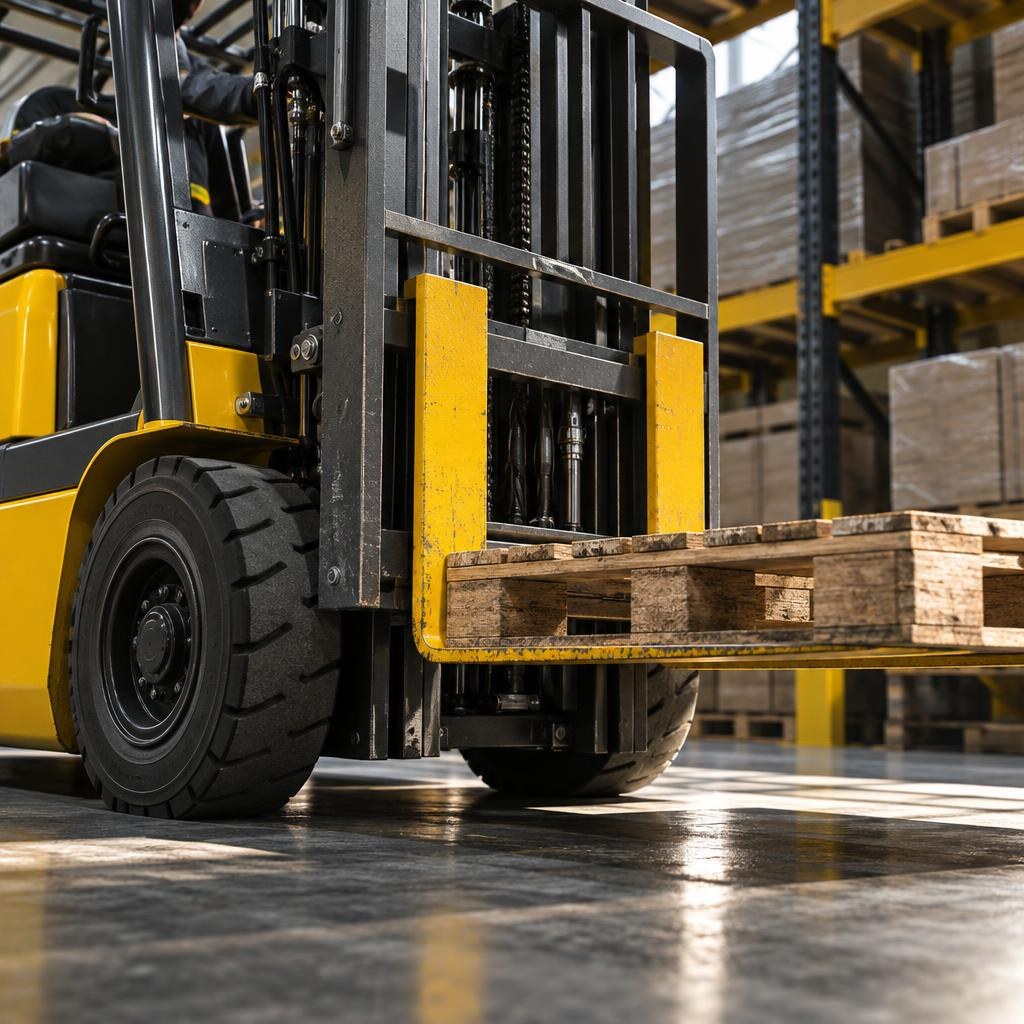

Fork tips doing the work, not a spec sheet
The EP30's mast and fork carriage are matched to 3.0 t loads at a 500 mm load center — confirmed against your pallet weight and aisle width before the unit ships.
Certifications
Compliance and quality assurance
The EP30 carries the EP Series baseline CE conformity plus the TÜV Rheinland certification reserved for Granvolt lithium battery systems.
CE
Conformity with EU Machinery Directive 2006/42/EC, covering the complete EP30 machine.
TÜV Rheinland
Certified lithium battery system. TÜV certification applies to the Granvolt EP Series battery systems, with the EP30 as the flagship.
ISO 9001:2015
Factory quality management system certification, covering the 68,000 m² Qingdao plant where every unit is 100% load-tested before shipment.
Applications
Where the EP30 works
Rated for heavy-duty indoor logistics and 3-shift operations.
Heavy-duty indoor logistics
3,000 kg @ 500 mm rated capacity with AC traction 6 kW for sustained heavy pallet flows in demanding indoor warehouses.
3-shift operations
0–80% charge in 2 h, 100% in 4 h, with opportunity charging during shift breaks and battery thermal management protecting the pack.
High-rack warehousing
3,000 mm standard lift height, extendable to a maximum of 6,000 mm, with a standard side shifter for precise pallet placement.
Attachments
Compatible AT Series attachments
The EP30 accepts Granvolt AT Series attachments running on the forklift hydraulic system, with lift height following the host forklift.
AT-SS201 — Hydraulic Side Shifter, 2.5 t
| Power type | Forklift hydraulic system |
|---|---|
| Lift height | Follows host forklift |
| Key parameters | Side shift ±100 mm; ISO class II & III carriage; hoses and couplers included |
| Applications | Truck loading, pallet position correction |
AT-PR351 — Paper Roll Clamp, 3.5 t
| Power type | Forklift hydraulic system |
|---|---|
| Lift height | Follows host forklift |
| Key parameters | 360° continuous rotation; adjustable clamping force; vertical-arm design for paper & textile rolls |
| Applications | Paper mills, printing plants, ports |
Note: attachment rated loads are independent of the host forklift capacity. Confirm the combined configuration in your RFQ.
Configure the EP30 for your fleet
Tell us your load profile, lift height, and attachment needs. Average response within 12 hours during working hours.
